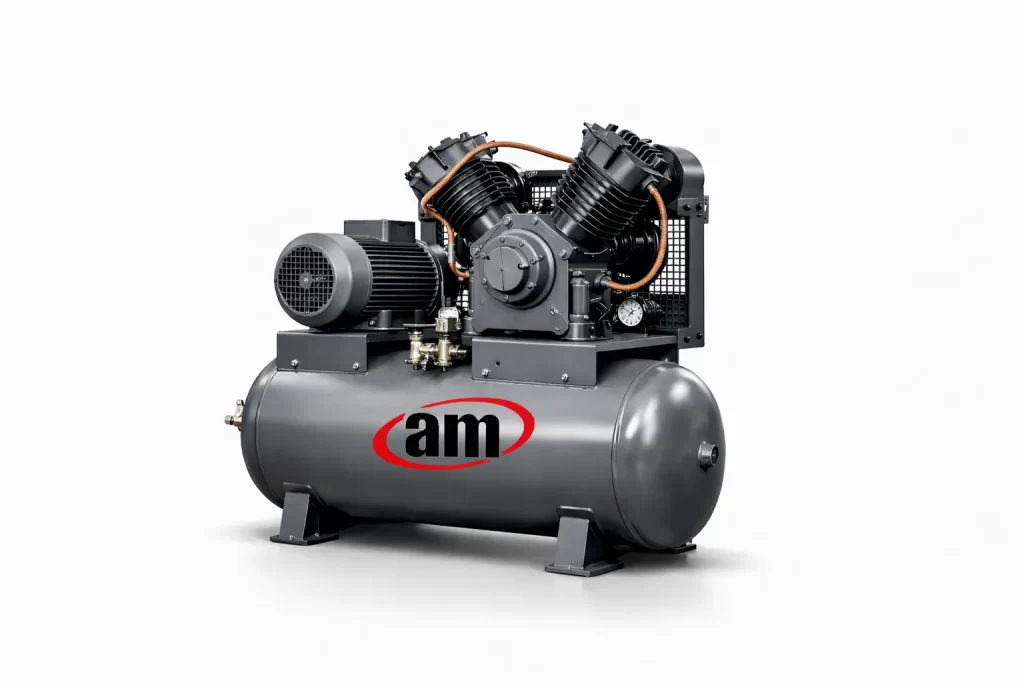

In industries where consistent high-pressure air supply is critical, performance and reliability cannot be compromised. Our Two-Stage Heavy Duty Industrial Air Compressors are engineered to deliver superior air output, enhanced efficiency, and long-term durability for demanding industrial applications.
Designed for continuous-duty operations, these compressors provide higher pressure levels with improved energy efficiency compared to single-stage models. Manufactured using premium-grade components and advanced engineering technology, each unit is built to withstand rigorous industrial environments while maintaining stable and efficient performance.
Every compressor undergoes strict quality testing to ensure compliance with industrial standards, guaranteeing dependable operation, minimal downtime, and extended service life.
Key Advantages
Higher Pressure Efficiency
Two-stage compression increases air pressure in two steps, which reduces the load on internal components and improves overall operating efficiency.
Energy Savings
With optimized compression ratios, these compressors consume less power compared to single-stage models, helping reduce operating costs.
Longer Service Life
Lower internal stress and improved cooling systems enhance the durability of major components, resulting in extended machine life.
Consistent High-Pressure Output
Designed to deliver up to 175 PSIG (12.3 Kg/cm²g), these compressors provide stable and reliable air pressure for demanding industrial applications.
Reduced Moisture Content
The two-stage design helps minimize moisture carryover, improving air quality and protecting connected equipment.
Lower Operating Temperature
Efficient heat dissipation keeps the compressor running at controlled temperatures, even during continuous operation.
Special Features
- Heavy-duty cast iron cylinders for extended durability
- Precision-balanced crankshaft for smooth operation
- Oversized intercooler for improved cooling efficiency
- High-quality piston rings for longer operational life
- Efficient air receiver tanks with safety valves
- Robust motor with overload protection
- Low vibration and noise levels
- Easy maintenance design
- Strict quality testing as per industrial standards
Technical Specifications
| Model | Motor (HP) | No. of Cylinders | Comp RPM | Piston Displacement (CFM) | Maximum Pressure (PSIG) | Maximum Pressure (Kg/cm²g) | Air Receiver (Litres) |
|---|---|---|---|---|---|---|---|
| 2234 | 2 / 3 | 2 | 675 / 960 | 7.46 / 9.79 | 175 | 12.3 | 150 |
| 4340 | 3 | 2 | 1000 | 11.25 | 175 | 12.3 | 150 |
| 2242 | 5 | 2 | 865 | 17.32 | 175 | 12.3 | 225 |
| 4475 | 5 / 7.5 | 2 | 865 / 1000 | 17.32 / 22 | 175 | 12.3 | 225 |
| 2253 | 7.5 | 2 | 660 | 26.4 | 175 | 12.3 | 250 |
| 4545 | 7.5 / 10 | 2 | 750 / 950 | 29.80 / 37.80 | 175 | 12.3 | 300 |
| 271T2 | 10 / 12.5 | 2 | 725 / 900 | 40 / 49.50 | 175 | 12.3 | 300 |
| 9100 | 15 | 3 | 900 | 55 | 175 | 12.3 | 300 |
| 215T | 15 / 20 | 3 | 700 / 900 | 63 / 81 | 175 | 12.3 | 500 |
| 225T2 | 20 / 25 | 2 | 800 / 900 | 81 / 99 | 175 | 12.3 | 500 |
Applications
- Automotive service centers
- Pneumatic tool operations
- Fabrication workshops
- Manufacturing industries
- Process industries
- Heavy engineering units
- Sand blasting operations
- Industrial painting systems
Frequently Asked Questions (FAQs)
1. What is the advantage of a two-stage air compressor?
Two-stage compressors compress air in two steps, which improves efficiency, reduces heat generation, and allows higher pressure output compared to single-stage models.
2. What maximum pressure do these compressors deliver?
These compressors are designed to deliver up to 175 PSIG (12.3 Kg/cm²g), suitable for heavy-duty industrial applications.
3. How do I select the right model?
Model selection depends on required CFM, working pressure, duty cycle, and application type. Higher HP models are recommended for continuous industrial use.
4. Are these compressors suitable for continuous operation?
Yes, these heavy-duty compressors are designed for long operating hours in demanding industrial environments.
5. What maintenance is required?
Regular inspection of filters, lubrication (if applicable), belt condition, and periodic servicing ensures reliable and efficient performance.
6. What industries commonly use two-stage compressors?
These compressors are widely used in automotive workshops, manufacturing plants, fabrication units, engineering industries, and process industries.
7. Are different air receiver capacities available?
Yes, multiple air receiver capacities are available, and customization can be provided based on application requirements.
Why Choose Our Two-Stage Heavy Duty Compressors?
- Proven industrial performance
- Precision engineering
- Tested for reliability
- Energy-efficient operation
- Long functional life
- Strong after-sales support
